LM Bush And Shafts

Discover the strength and durability of our LM Bush and Shafts, available from your top-rated distributor, supplier, and trader with over 9 years of experience serving clients across All India. Our collection features the lowest price offerings on sought-after types such as the LMK Square Type Bush, robust Machined LM Shaft, Bottom Support Shaft, Hardened & Ground Chrome Plated Hollow Shaft, and advanced Center Flenge Types Bushes. Engineered for impeccable performance, these products showcase unmatched hardness, corrosion resistance, top-notch dimensional accuracy, and incomparable load-bearing capabilities, making them ideal for a wide range of industrial automation, machine tool, and precision movement applications. Their ease of installation and maintenance further sets our LM Bush and Shafts apart in the market. Choose us for the top quality, reliability, and value-these components continually set the standard for excellence and are recognized industry-wide for their superlative features and dependable supply throughout the domestic market.

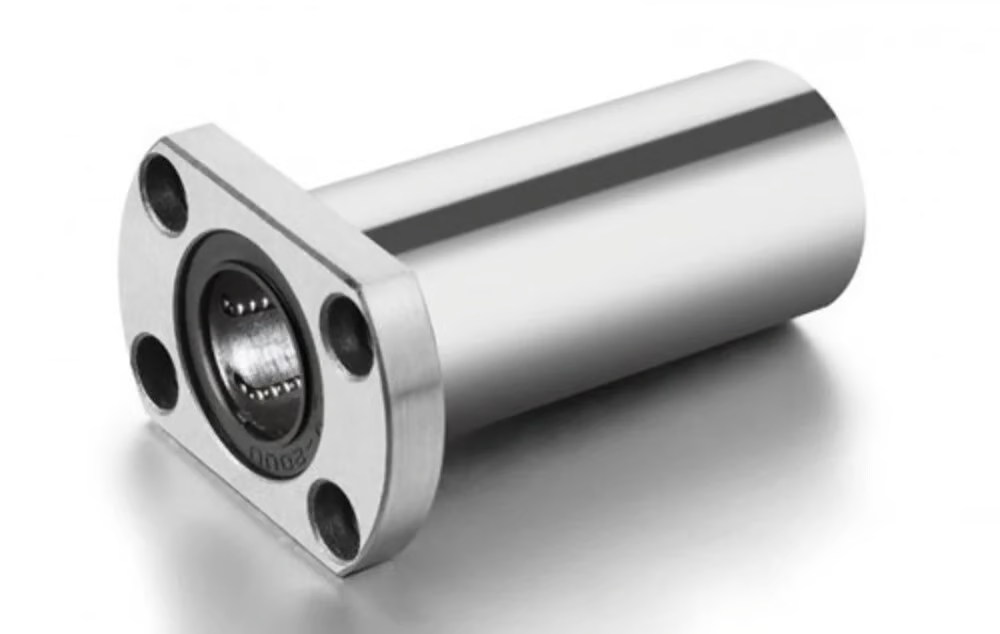

LMT Oval Type Bush

MOQ : 1 Unit

  • Coating
  • Hard Chrome Plated
  • Diameter
  • Available from 8 mm to 50 mm
  • Hardness
  • 58-62 HRC (Rockwell Hardness)
  • Length
  • Customized/Standard (commonly 30 mm - 120 mm)
  • Material
  • Other, High-grade Alloy Steel
  • Precision
  • High Precision, Tolerance 0.01 mm
  • Quality Level
  • Other, Industrial Grade
  • Roundness
  • 0.002 mm
  • Texture Type
  • Other, Smooth Surface Finish
  • Thickness
  • Precision Machined (As per requirement, typically 2-8 mm)

Bottom Support Shaft

MOQ : 1 Unit

  • Coating
  • Chrome Plating
  • Diameter
  • 16 mm, 20 mm, 25 mm, 30 mm (other sizes available)
  • Hardness
  • HRC 58-62
  • Length
  • 500 mm to 4000 mm (customizable)
  • Material
  • Other, High Carbon Steel
  • Precision
  • High Precision (Tolerance 0.01 mm)
  • Quality Level
  • Other, Industrial Grade
  • Roundness
  • 0.003 mm
  • Texture Type
  • Other, Smooth Surface
  • Thickness
  • Varies (typically 10-40 mm as per requirement)

Center Flenge Types Bushes

MOQ : 1 Unit

  • Coating
  • Zinc / Nickel / Phosphate / Uncoated
  • Diameter
  • Outer: 20 mm - 120 mm; Inner: 10 mm - 100 mm
  • Hardness
  • 55-65 HRC (depending on material and application)
  • Length
  • 40 mm - 150 mm
  • Material
  • Other, Carbon Steel / Alloy Steel / Stainless Steel
  • Precision
  • High Precision (0.01 mm)
  • Quality Level
  • Other, Industrial Grade
  • Roundness
  • 0.02 mm
  • Texture Type
  • Other, Smooth Machined Finish
  • Thickness
  • Custom as per order (generally 5 - 15 mm)

Circular Type Bush

MOQ : 1 Unit

  • Coating
  • Hard Chrome Plated / Anti-Rust Coating
  • Diameter
  • Customized (Typical: 5 mm - 50 mm)
  • Hardness
  • HRC 58-62
  • Length
  • Customized (Typical: 20 mm - 120 mm)
  • Material
  • Other, Alloy Steel / Stainless Steel
  • Precision
  • 0.01 mm
  • Quality Level
  • Other, High Precision Industrial Grade
  • Roundness
  • 0.003 mm
  • Texture Type
  • Other, Smooth Polished
  • Thickness
  • Customizable (Standard: 2-4 mm)

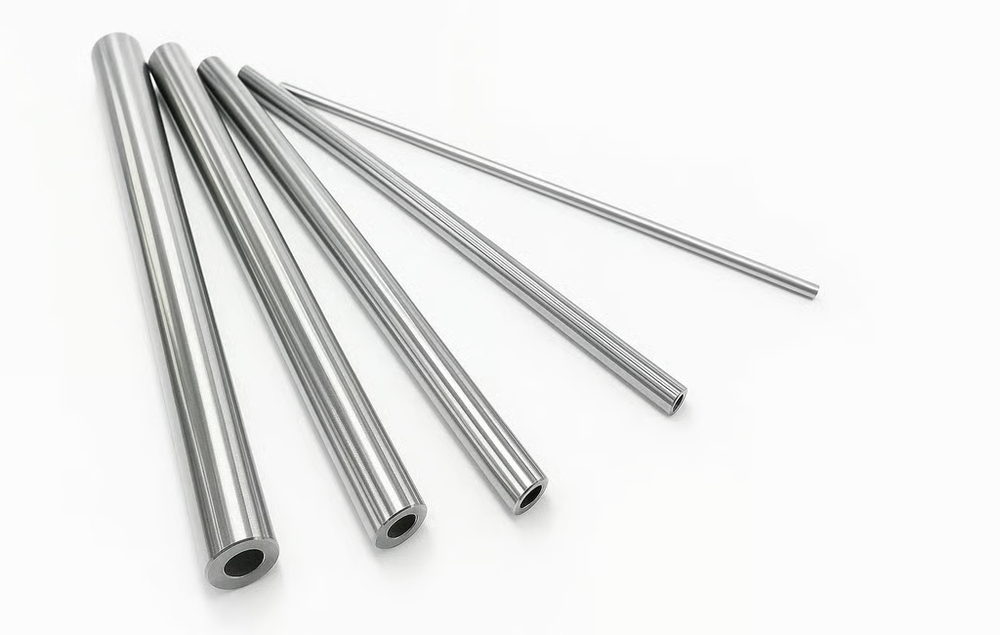

Hardened & Ground Chrome PLated Hollow Shaft

MOQ : 1 Unit

  • Coating
  • Hard Chrome Plated
  • Diameter
  • 6 mm - 100 mm (or as required)
  • Hardness
  • HRC 58-62
  • Length
  • Standard lengths up to 6000 mm or custom
  • Material
  • Other, Alloy Steel / Carbon Steel
  • Precision
  • High Precision (Tolerance h7/h8 or as required)
  • Quality Level
  • Other, Industrial Grade
  • Roundness
  • 0.001 mm
  • Texture Type
  • Other, Hardened & Ground
  • Thickness
  • Variable as per specifications

Hardened and Ground Chrome Plated Shaft for Linear Bearing

MOQ : 1 Unit

  • Coating
  • Chrome Plated
  • Diameter
  • 6 mm to 100 mm (custom diameters available)
  • Hardness
  • 60-65 HRC
  • Length
  • 100 mm to 6000 mm (custom lengths available)
  • Material
  • Other, High Carbon Steel / Stainless Steel
  • Precision
  • High Precision (ISO h6, h7 tolerances)
  • Quality Level
  • Other, ISO Grade / Industrial Precision
  • Roundness
  • 5 m (microns)
  • Texture Type
  • Other, Hardened & Ground
  • Thickness
  • Custom / As Specified

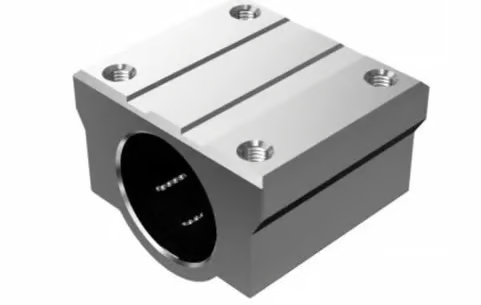

LM Bush SMA Type

MOQ : 1 Unit

  • Coating
  • Corrosion Resistant Plating or Chrome Plated
  • Diameter
  • Varies, typically 8mm to 60mm
  • Hardness
  • HRC 58-64
  • Length
  • As per standard specifications (series-dependent)
  • Material
  • Other, Bearing Steel / Alloy Steel
  • Precision
  • High Precision Class
  • Quality Level
  • Other, Industrial Grade
  • Roundness
  • 0.003 mm
  • Texture Type
  • Other, Smooth, Polished
  • Thickness
  • Varies with model (typically 5-10 mm)

LM Shaft With Support

MOQ : 1 Unit

  • Coating
  • Hard chrome plated
  • Diameter
  • 12mm, 16mm, 20mm, 25mm, 30mm, etc.
  • Hardness
  • HRC 58~62
  • Length
  • Customizable, standard lengths 500mm to 2000mm
  • Material
  • Other, High-carbon steel / Stainless steel
  • Precision
  • High dimensional precision - tolerance 0.01mm
  • Quality Level
  • Other, Industrial grade
  • Roundness
  • 0.003mm
  • Texture Type
  • Other, Smooth, polished
  • Thickness
  • Varies (typically 10mm - 40mm diameter options)

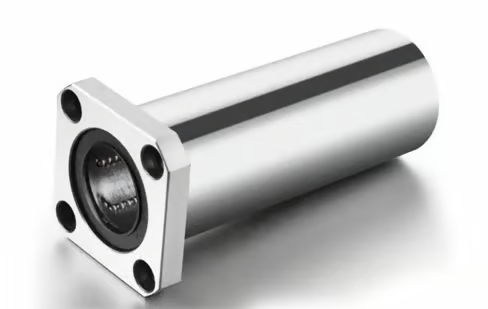

LMK Square Type Bush

MOQ : 1 Unit

  • Coating
  • Anti-corrosion Chrome Plating
  • Diameter
  • Varies from 8mm to 50mm
  • Hardness
  • HRC 58-64
  • Length
  • Varies from 30mm to 150mm
  • Material
  • Other, High Carbon Chromium Steel
  • Precision
  • High Precision (0.01mm)
  • Quality Level
  • Other, Industrial Grade
  • Roundness
  • 0.003mm
  • Texture Type
  • Other, Smooth Precision Finish
  • Thickness
  • Standard (varies as per model)

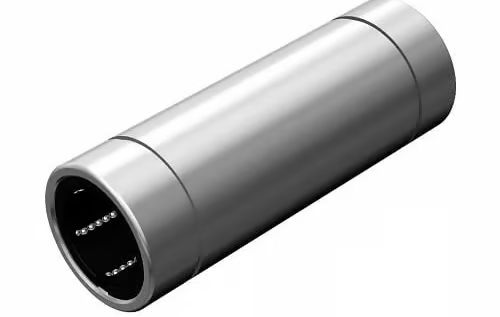

Long Type LM Bush

MOQ : 1 Unit

  • Coating
  • No special coating or Chrome-plated available
  • Diameter
  • 12 mm to 60 mm (varies by model)
  • Hardness
  • HRC 58~64
  • Length
  • Long type (typically 40-150 mm, depends on model)
  • Material
  • Other, Bearing Steel (SUJ2)
  • Precision
  • ISO Class 4 or 5
  • Quality Level
  • Other, High Precision
  • Roundness
  • 0.002 mm
  • Texture Type
  • Other, Smooth/Polished
  • Thickness
  • Standard (varies by model, typically 1-2 mm)

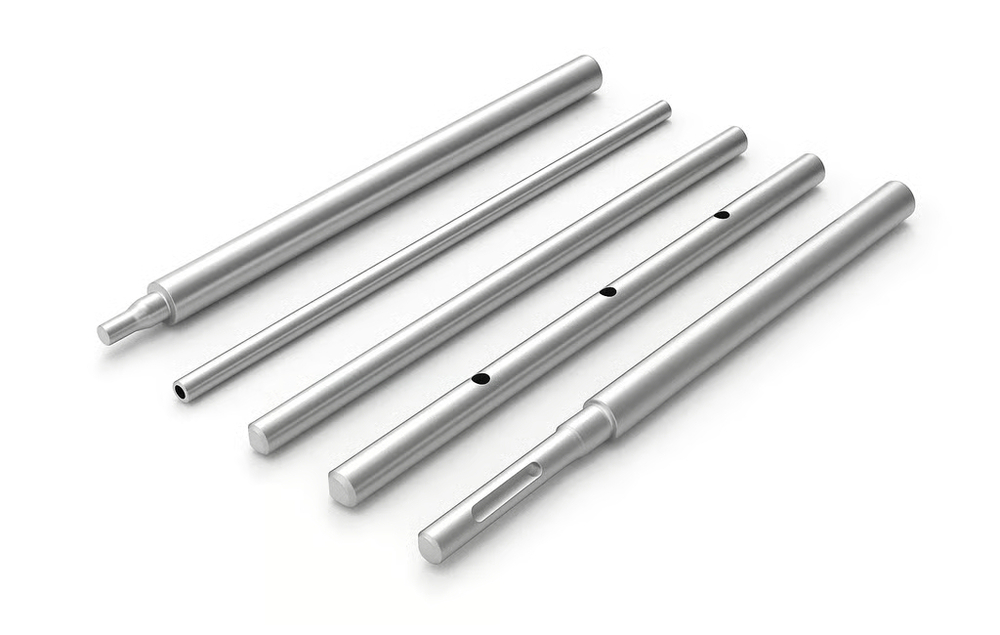

Machined LM SHAFT

MOQ : 1 Unit

  • Coating
  • Chrome Plated (optional)
  • Diameter
  • 6 mm to 100 mm (customizable)
  • Hardness
  • 58-64 HRC (Induction Hardened)
  • Length
  • 100 mm to 6000 mm (customizable)
  • Material
  • Other, High Carbon Steel / Stainless Steel
  • Precision
  • Up to 5 micron
  • Quality Level
  • Other, High Precision Grade
  • Roundness
  • 5 micron
  • Texture Type
  • Other, Ground, Polished Surface
  • Thickness
  • Custom as per specifications
